Specification

Model 225
Model 315
Model 400
Model 630
Fusion Range
75 - 225mm
75 to 315mm
200 to 400mm
315 to 630mm
Power Consumed
220V / 2000W
220V / 3000W
220V / 3500W
220V / 4600W
Maximum Pressure
130 kgf/cm2
130 kgf/cm2
140 kgf/cm2
140 kgf/cm2
Controller Weight
32kg
32kg
40kg
50kg
Chamfering Machine Weight
13kg
21kg

Body Weight
32kg
52kg

Heater Weight
7kg
11kg

Body Width
490mm
348mm

Feature of Product:

1.   Outside temperature is measured and cooling time is automatically corrected.

2.   Internal printer is installed.

3.   Light and is designed so that worker may use it conveniently.

4.   Able to view fusion result in advance through screen panel before print.

5.   Back light function is provided so as to see fusion status during night work.

6.   Welding ASTM standard and ISO standard dimention pipe.

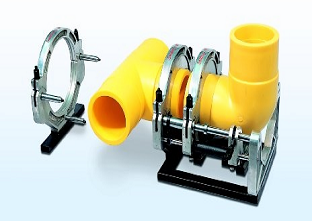

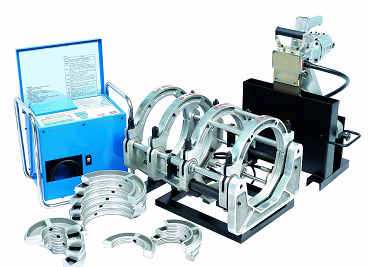

Butt Fusion Machine
