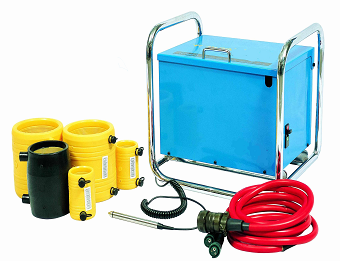

Electrofusion Machine
1.   All functions are designed for ease of operation.

2.   The display is equipped with back-lighting.

3.   This will enable operator to work in poor lighting and at night

4.   Depending on site, fusion number is automatically changed and stored (up to 20 enterprise numbers).Inputting enterprise and site unique number can continuously connect fusion number and perform work even when moving from site to site.

5.   You can see fusion content using view function without printing.(Black mark at abnormal part)

6.   The built-in printer uses thermal paper. Outputting 1 fusion result takes about 1.5 seconds.

7.   Change quantity of output current per hour is divided into 10 sections for output,so that reliability on fused material may be enhanced.

8.   Output capacity is designed as 3600W (220Vac) in order to supply stable output.

9.   The machine is equipped with a bar code reader of convenient CCD type, which can read at once.

10.  Stable fusion becomes possible thru accurate control of output voltage (40Vac)at the input voltage even with high voltage jumps.
Feature
Specification
Operating voltage:
AC85 - 150V / AC85 - 250V
Fusion voltage:
AC85 - 150V / AC170 - 250V
Output voltage:
AC40.0V
Storage Temperature:
-10 º c  to  70º c
Operating Temperature:
0º c  to  50º c
Dimension:
350(W)X260(D)X230(H)
Weight:
30Kg
Power consumed:
0.1Kw - 3.6Kw
Output current:
2A - 80A
Fusion data storage:
200 Times
Fusion time:
10sec - 999sec
